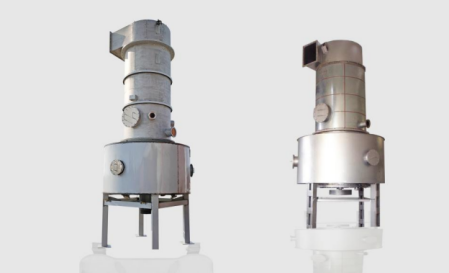

Spin Flash Dryer
Description
Flash dryer is a vertical dryer with rotary pulverizing device, which can simultaneously dry, pulverize and classify materials. It is for filter cake, paste and muddy material drying.

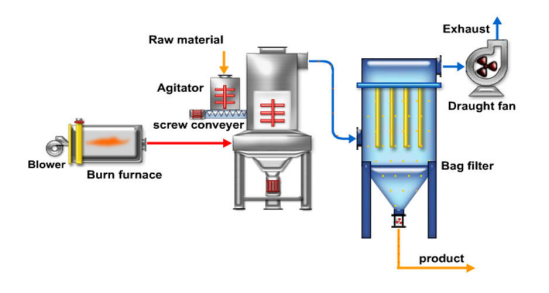

Working Principle
The clean thermal medium heated by the heat source enters the drying chamber in a tangential form, forming a powerful vortex swirling airflow with the mechanical agitation mechanism. The wet material is metered into the drying chamber by a feeder, pulverized and dried by stirring and vortex flow. The top of the drying chamber is set with a particle size classifier. The fine powder that meets the drying requirements is discharged from the top of the tower and collected by the latter separator. The larger particles that do not meet the drying requirements are blocked by the classification ring, returned to the drying chamber, and continue to be pulverized and dried. After drying to qualified product, it is discharged out the drying chamber with hot air and collected by a separator. The clean exhaust gas is emptied by the induced draft fan.
Applicable Materials
Applicable Materials:
Has been widely used in fine chemicals, dyes, pesticides and intermediates, food and metallurgy ore industry. Such as magnesium hydroxide, aluminum hydroxide, alumina, molecular sieve, 4A zeolite, white carbon black, dibasic acid, mancozeb, silica gel, stearate, various carbonates, various heavy metal salts, etc.
Specification
Specification:
| Specification | Diameter(mm) | Evaporative Capacity(kgH2O/h) | Installed Power(kw) | Height(m) | Area(m*m) | Temperature(℃) | Others |
| GSX-300 | Ф300 | 20~50 | 2.2~5.5 | 4 | 3.8*2.7 | 120~350(high temperature flash can reach 550) | Heat source: gas, steam, electricity, coal, oil, etc. |
| GSX-500 | Ф500 | 30~100 | 5.5~7.5 | 5 | 4*3 | ||
| GSX-600 | Ф600 | 40~200 | 5.5~7.5 | 6 | 4.3*3.2 | ||
| GSX-800 | Ф800 | 60~600 | 11~22 | 6.5 | 4.5*3.5 | ||
| GSX-1000 | Ф1000 | 100~1000 | 11~22 | 7.5 | 4.8*3.8 | ||
| GSX-1200 | Ф1200 | 150~1300 | 11~22 | 8 | 5*4 | ||
| GSX-1250 | Ф1250 | 150~1400 | 15~18.5 | 8 | 5*4 | ||
| GSX-1300 | Ф1300 | 180~1400 | 15~45 | 8.5 | 5.1*4.1 | ||
| GSX-1400 | Ф1400 | 200~1600 | 15~45 | 9 | 5.3*4.3 | ||
| GSX-1600 | Ф1600 | 250~2500 | 30~45 | 9.5 | 5.5*4.5 | ||
| GSX-1800 | Ф1800 | 300~2500 | 30~75 | 10 | 6*5 | ||
| GSX-2000 | Ф2000 | 400~3200 | 45~75 | 11 | 6.5*5.5 | ||
| GSX-2400 | Ф2400 | 500~4000 | 45~90 | 12 | 7*6 |
