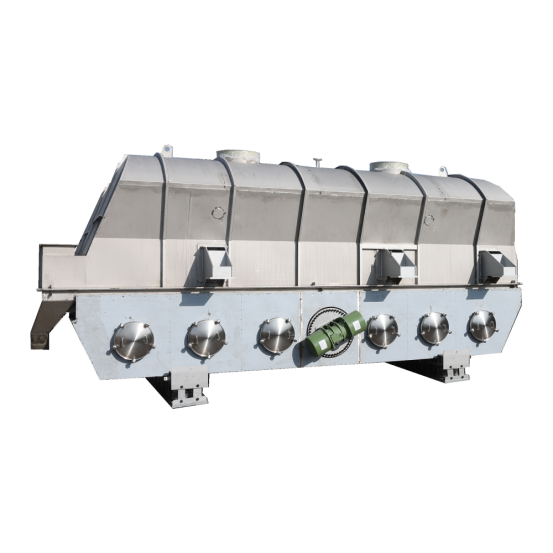

Vibrating Fluid Bed Dryer
The material jumps forward under the action of the exciting force, the material particles and the hot air are in full contact so as to achieve the ideal drying effect with the small consumption of system power. It is suitable for drying large particles and high requirements for crystallization.
Description
The material jumps forward under the action of the exciting force, the material particles and the hot air are in full contact so as to achieve the ideal drying effect with the small consumption of system power. It is suitable for drying large particles and high requirements for crystallization.
Characteristics
1. High heat transfer efficiency and good self-cleaning function of heat transfer surface.
2. Wide adaptability of materials, uniform product drying and stable quality.
3. Compact structure, easy to operate and maintain, small occupying area.
4. Less material entrainment, high product yield.
Specification
Specification:
| Specification | Heat Transfer Area (m2) | Water Evaporation Quantity (kg/h) | Effective Volume (m3) | Installed Power (kw) | Speed (r/min) | Dimensions | ||
| L | W | H | ||||||
| CD250 | 6. 2 | 30-60 | 0. 25 | 2. 2 | 5-15 | 4300 | 720 | 900 |
| CD400 | 14 | 70-140 | 0. 94 | 11 | 5400 | 1050 | 1260 | |
| CD600 | 30 | 150-300 | 2 | 22 | 7200 | 1300 | 1800 | |
| CD800 | 70 | 350-700 | 5. 1 | 45 | 9900 | 1840 | 2300 | |
| CD900 | 90 | 450-900 | 7. 4 | 55 | 11000 | 1920 | 2290 | |
| CD1000 | 110 | 550-1100 | 10. 5 | 90 | 12500 | 2050 | 2700 | |
| CD1200 | 150 | 750-1500 | 15 | 110 | 13200 | 2450 | 3200 | |
| CD1400 | 190 | 950-1900 | 20. 5 | 110 | 14500 | 2710 | 3630 | |
